Product overview

Smart irrigation control hardware for drip and field systems.

Soil moisture sensor nodes and edge controllers that automate existing drip and open-field valves. Bloomiot does not sell drip irrigation kits — optional hardware is quoted per deployment and is never included in Workspace checkout.

IoT sensor nodes

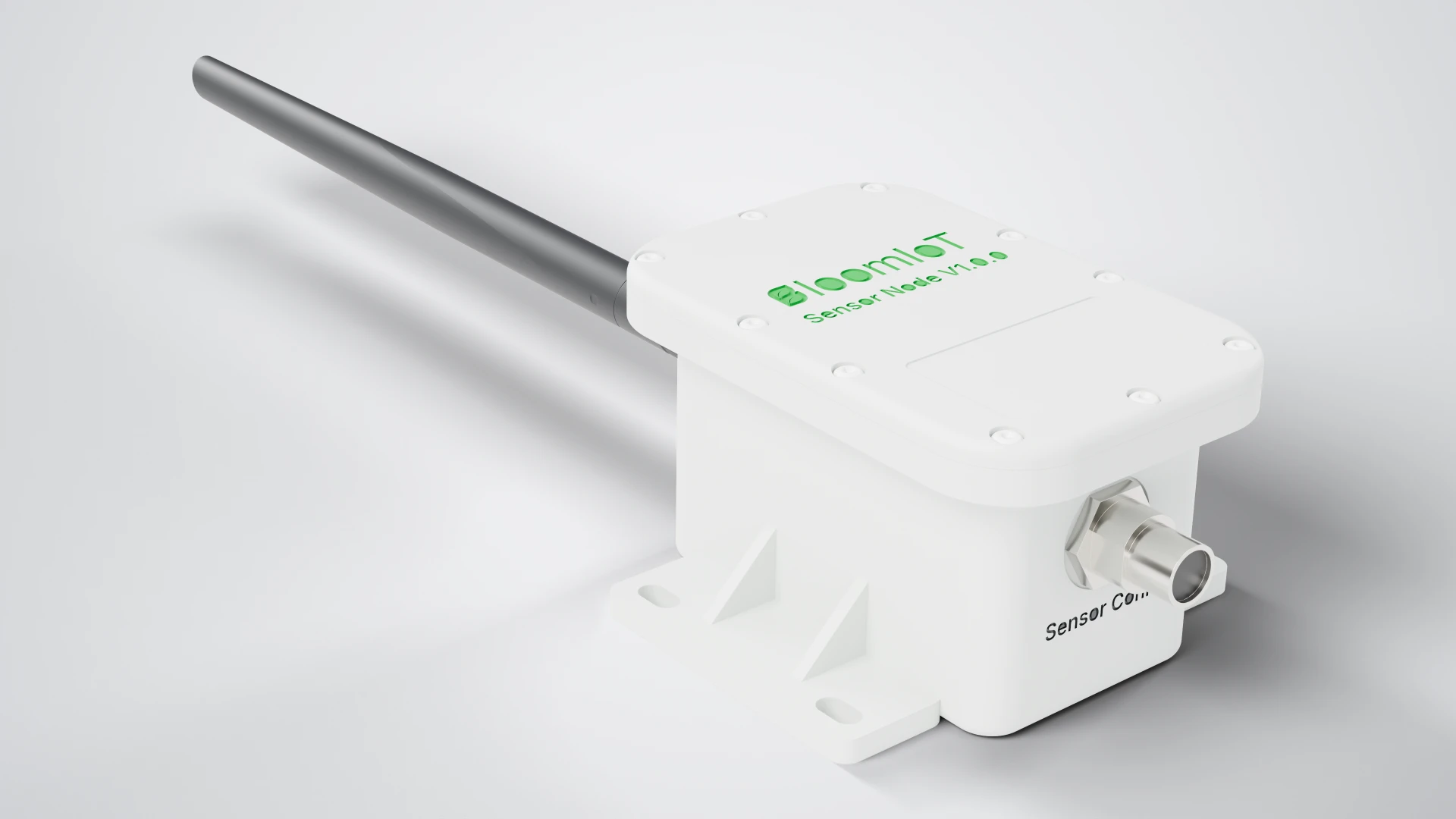

Soil Sensor Node

Remote sensing node for agro-industrial applications.

Field-grade IoT device designed for ultra-low power and remote operation. It integrates Li-SOCl2 cell power with a pulse energy reservoir, LoRaWAN connectivity and full compatibility with industrial signals over RS-485 / Modbus RTU and 4-20 mA, bringing reliable field data to the irrigation platform.

LoRaWAN
Ultra-low power
RS-485 / Modbus RTU
4-20 mA input
Li-SOCl2 3.6 V
IP field connectors

Usage advantages

Brings measurement close to the plot or hydraulic point without long data wiring.
Eases integration with existing industrial sensors via 4-20 mA and RS-485 / Modbus RTU.
Architecture aligned with low-maintenance, long-life remote nodes.
LoRaWAN connectivity for distributed deployments across open fields.

Technical features

Power: Li-SOCl2 3.6 V non-rechargeable cell with pulse energy reservoir.
Battery life: Long service life thanks to ultra-low power draw — approximately 3 years.
Wireless: Pre-certified LoRaWAN module over SPI with controlled 3V3_LORA rail.
Inputs: 1x 4-20 mA, 1x RS-485 / Modbus RTU and battery measurement via ADC.
Outputs: 1x RS-485 / Modbus RTU and SPI interface to the LoRa module.
Field: IP waterproof connectors for reliable in-field wiring.

Edge controller

Edge Controller

Local industrial controller for agricultural irrigation.

Local decision and actuation unit for irrigation systems. It receives data from LoRaWAN nodes, reads industrial sensors on-site, executes control logic, detects abnormal hydraulic conditions through pressure sensing, and reports telemetry, alarms and events to the cloud platform.

9-30 VDC input
Local decision
Valve control
Telemetry & alarms
RS-485 / 4-20 mA
RTC + non-volatile memory

Usage advantages

Runs irrigation decisions locally even when cloud connectivity is lost.
Integrates industrial sensors, digital inputs and actuators in a single unit.
Helps supervise hydraulic behavior through pressure sensing.
Scales to telemetry, alarms and dashboards through a LoRaWAN gateway.

Technical features

Power: Industrial 9-30 VDC input, typical 24 VDC operation.
Protection: Reverse polarity, fuse / PTC and TVS input protection at the front-end.
Control: Main MCU running the local irrigation control logic.
Interfaces: RS-485, 4-20 mA analog inputs and digital inputs.
Wireless: Pre-certified LoRaWAN subsystem for node and gateway communication.
Memory / Time: Non-volatile memory and RTC for persistence, timestamps and scheduling.
Actuation: 24 V relay outputs and DC latching valve outputs.

Field connectivity layer

LoRaWAN gateway and link orchestration between remote nodes and the cloud.

Monitoring dashboard

Unified view for telemetry, alarms and operational control across every site.

Optional field devices

Compatible hardware — sold separately, never through Workspace checkout.

Bloomiot Workspace is a cloud software subscription. Optional sensor nodes and edge controllers can connect to it, but physical hardware is quoted and fulfilled offline by Bloomiot sales — it is not sold, shipped, or billed through the website Scale checkout (Paddle).

Sensor Node

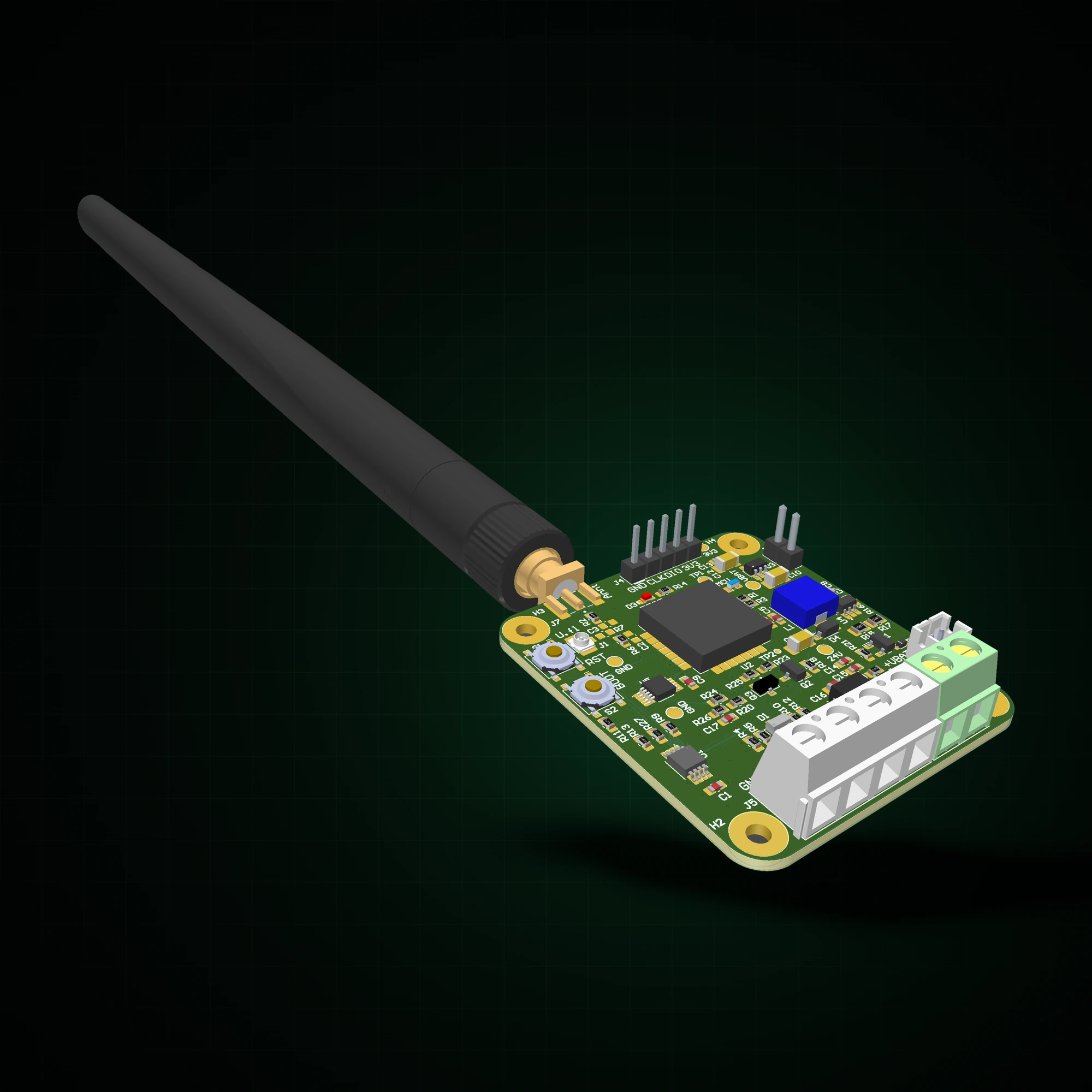

Engineering prototype Bloomiot soil sensor node hardware, engineering render

Production enclosure in development

Optional compatible device for soil and line metrics. Available via separate sales quote — not included in the online Workspace subscription.

Edge Controller

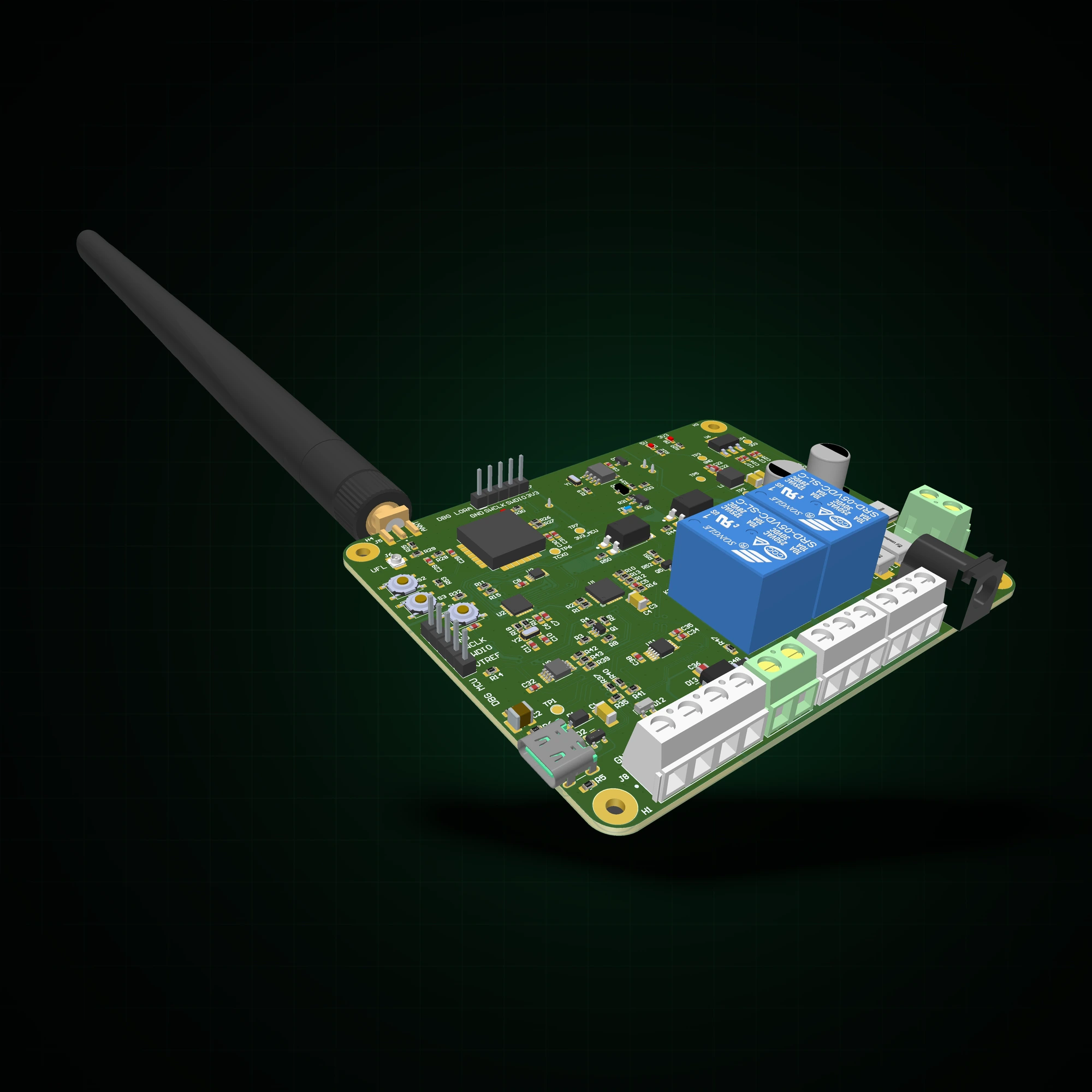

Engineering prototype Bloomiot irrigation edge controller hardware, engineering render

Production enclosure in development

Optional compatible device for local logic and valve control. Available via separate sales quote — not included in the online Workspace subscription.
